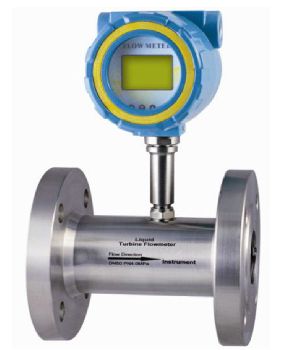

Turbine Flow Meter


Turbine Flow Meter


We are among the distinguished Manufacturers, Exporters and Suppliers of Turbine Flow Meter. Turbine Flow Meter operates on the principle of motion, where the flow meter senses the spinning of the rotor inside and converts it into pulsating electrical signal. Turbine Flow Meter provides an accurate performance and is highly acknowledged for its smooth operation, robust construction and longer service life.


Specifications

Type Turbine Flow Meter
Brand Name NXL
Place Of Origin Banglore
Condition New Good
Feature Robust construction and longer service life.

Additional Information

Payment Terms T/T, Other


Specifications

Op Pressure Defined By Endconnections
upto 400 bar
Pick Off Type Magnetic Output 15 to 20 mV min
Temparature -20 Deg C to 80 Deg C
Linearity +/- 0.5% of Reading
Repeatability +/- 0.05% of Reading
Display 6 digit LCD ( Total Mode )
4 digit LCD ( Flowrate Mode )
Power Supply Self Powered-replaceble Lithium
Batteries ( Optional ) External 8-24 V dc via 4-20mA loop
Enclosure IP 66 ( Mounted on the Meter )
Units ( Total) Litres,Gallons,Cubic Meters
Time ( Rate ) Per Second,Minutes,Hour
K Factor Range/Decimals Programmable
Data input Via Keys
Analogue Output optional 2 Wire 0/4-20mA,
12-24V dc into 750 ohms @ 24 V.
Linearisation Up to 10 Points.( optional )
Indications Low Battery Indication
