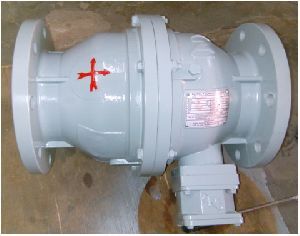

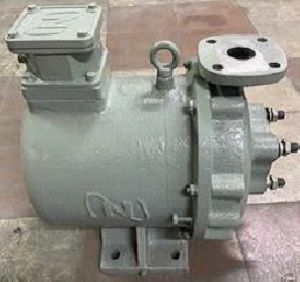

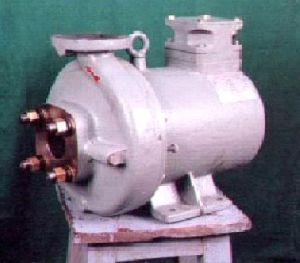

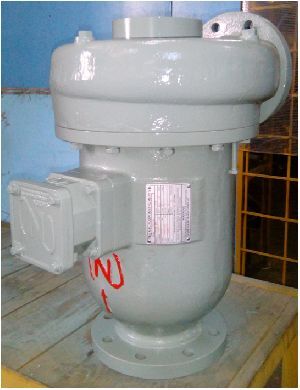

Centrifugal & Axial Flow Transformer Oil Pump


Centrifugal & Axial Flow Transformer Oil Pump


We are rated among distinguished organizations involved in offering a wide range of Centrifugal & Axial Flow Transformer Oil Pump. The Centrifugal & Axial Flow Transformer Oil Pump we offer is equipped with oil /thermal cooling feature that makes it suitable for applications found in heat transfer plants. In addition to this, Centrifugal & Axial Flow Transformer Oil Pump provided by us is designed using heavy duty bearings and components, adhering to latest industrial standards.

Feature

  • No Gland Leakage
  • Weather Proof
  • Self-Lubricating
  • Universal Mounting
  • Compact Design
  • Maintenance Free


Applications

  • In refrigerating oil piping of static or as mobile transformers and converters.
  • In Locomotives, to assemble as a unit on a common shaft.
  • In Line Installation, either vertically or horizontally to allow for minimum thermo-syphon resistance.

Specifications

Feature No Gland Leakage,Weather Proof,Self-Lubricating,Universal Mounting,Compact Design,Maintenance Free
Brand Name NXl
Place Of Origin Banglore
Condtion New Good
Type Centrifugal Type

Additional Information

Payment Terms T/T, Other


Specifications

Model Motor
HP
Discharge in
LPM
Total Head in
mts
Suction Delivery
3115 1.5 400 7.3 3" (76) 2 1/2" (63.5)
3120 2.0 115 to 385 15 to 4.6 1 1/2" (38) 1 1/2" (38)
3130 3.0 115 to 430 18 to 4.2 1 1/2" (38) 1 1/2" (38)
3143 4.3 750 to 1200 11 to 7.5 4" (100) 4" (100)
3175 7.5 830 to 2250 20 to 7.5 6" (150) 6" (150)
4105 0.5 300 2.5 3" (80) 3" (80)
4115 1.5 400 7.3 3" (80) 3" (80)
4120 2.0 1800 2.5 6" (150) 6" (150)
4130 3.0 1200 3.35 6" (150) 6" (150)
4140 3.0 1600 0.9 8" (200) 8" (200)
4150 5.0 2700 2.5 8" (200) 8" (200)
4151 5.0 4500 1.2 8" (200) 8" (200)
4152 5.0 4500 3.0 8" (200) 8" (200)
4175 7.5 1000 18.0 4" (100) 4" (100)
4115 15.0 1000 18.0 4" (100) 4" (100)
3130FM 3.0 40 15.0 2" (50) 1 1/2" (38)
3150FM 5.0 100 15.0 2" (50) 1 1/2" (38)
3175FM 7.5 170 15.0 2" (65) 1 1/2" (38)
